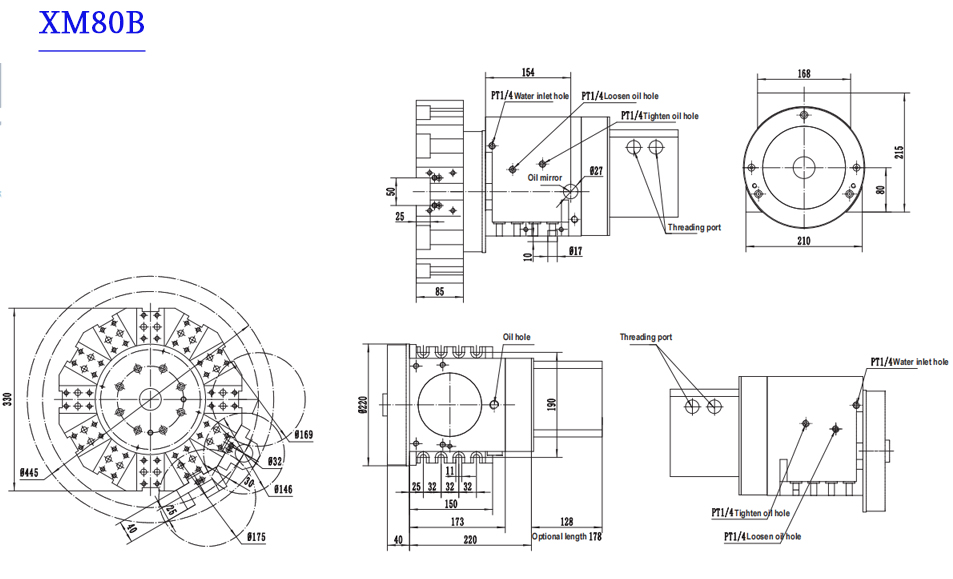

XM80B High Quality Hydraulic Servo Nc Turret
Nc Turret Feature:
- Very high rotate speed with min. indexing time
- High rigidity, durability and low noise
- Bi-direction rotate, double sensor for locking and unlocking status
- Tool disc of 6T, 8T, 10T, 12T is optional
- Accept OEM/ODM order
share:
| Item | Unit | Model（XM80B） |
|---|---|---|
| Center height | mm | 80 |
| Number of tools | N | 8T/10T/12T |
| Gear speed ratio | 36:1 | |
| Servo motor speed | rpm | 2000 |
| Servo motor power | Kw | 0.75 |
| Tool selection direction | CW/CCW | |
| Rotating time (tool to tool) | s | 0.45 |
| Rotating time (including locking) | s | 0.55 |
| Total indexing time for 180° | s | 0.65 |
| Total indexing time for 180° (incuding locking) | s | 0.75 |
| Curvic couplings type | 3 Piece | |
| Indexing frequency (90° inversion) | min-1 | 18 |
| Hydraulic working pressure | MPa | 3.5 |
| Flow rate | L/min | 20 |
| Thrusting force of hyd.cyl. | kgf | 3100 |
| Accuracy of repeatability | mm | 0.003 |
| Ambient temperature | °C | 5-40 |
| Cutting fluid pressure(filtration accuracy)≤ 100ym Disconnect during transposition |
MPa | 2 |
| Cutting fluid pressure(filtration accuracy)≤ 100ym Keep on opening while transposing |
MPa | 0.7 |
| Protection class | IP65 | |
| N.W. | Kg | 105 |
| Turret Disc Size And Accessories | ||
| 8T | mm | 280/300 |
| 10T | mm | 330 |
| 12T | mm | 330 |
| 0.D.Tool | mm | 25 |
| Facing Tool | mm | 25 |
| Boring Tool | mm | φ20 |
