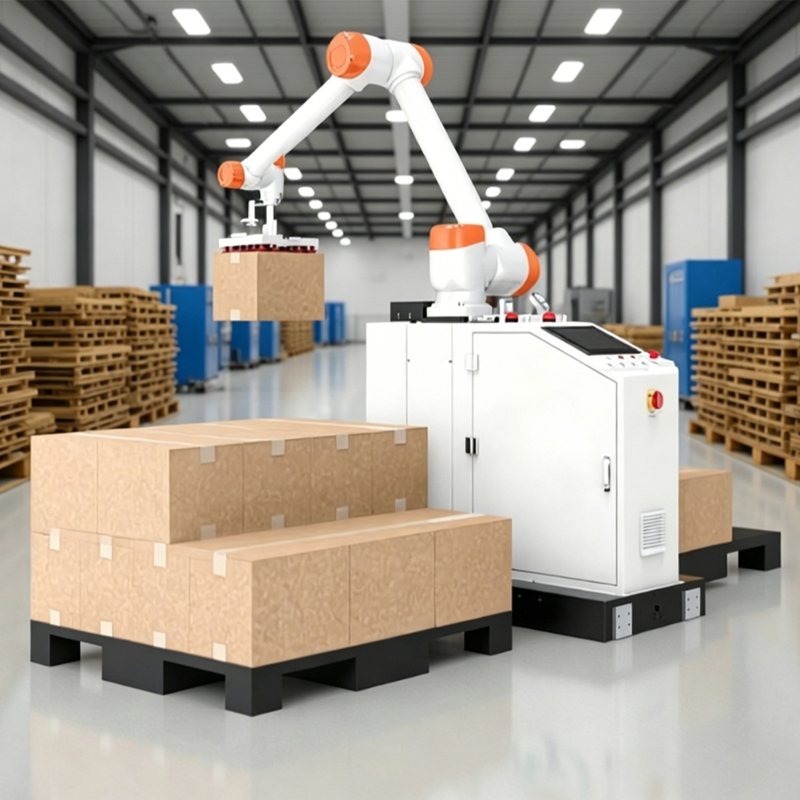

30kg Cobot Palletizer AM-30-H

30kg Cobot Palletizer AM-30-H

Collaborative Robot Features:
  • Intelligent Collaboration: Works seamlessly with human operators for enhanced productivity.

    Safe Design: Equipped with advanced sensors for collision avoidance ensuring worker safety.

    Wide Range of Applications: Suitable for manufacturing, assembly, and logistics tasks.

    Ergonomic Handling: Easy to operate with intuitive controls for improved efficiency.

    Durable Construction: Built to withstand industrial environments with robust materials.

SKU: XMRBT-4747 Category: Tag:

share:

The AM-30 cobot palletizer series is optimized for medium-weight palletizing tasks, balancing high load capacity and efficient production performance with a 30kg full payload and a sustained speed of 12 cartons per minute. Consistent with the product lineup layout, it provides AM-30-G, AM-30-S and AM-30 Ultra three configurations to flexibly match standard stacking, high stacking and wide-range working scenarios, fully covering various pallet size and height specifications on industrial production sites. The entire series inherits unified industrial-grade configurations, including precise repeated positioning, mature 10-level collision safety detection and stable EtherCAT communication, ensuring safe and stable human-machine collaborative operation in long-term continuous production. With abundant preset palletizing trajectories and intelligent adjustable stacking logic, it can quickly adapt to different packaging specifications and production switching needs. Featuring simple deployment, easy operation and strong compatibility, the AM-30 series is widely applicable to standardized automated packaging lines in multiple industries.

Parameter ItemAM-30-H
Payload30kg
Working space radius1460mm
Horizontal distance (pallet size)Compatible with max pallet size 1200mm*1000mm, working radius 1460mm
Palletizing heightLifting H₃=2300mm
Speed≤7pcs/min
Repeatability accuracy±0.04mm
Air consumption300-500L/min
CommunicationEtherCAT, IO
IPIP54
Temperature0-50℃
Max power4KW
Power supply1PH 220v/50Hz
Weight≈390Kg
Footprint1973*1488mm
