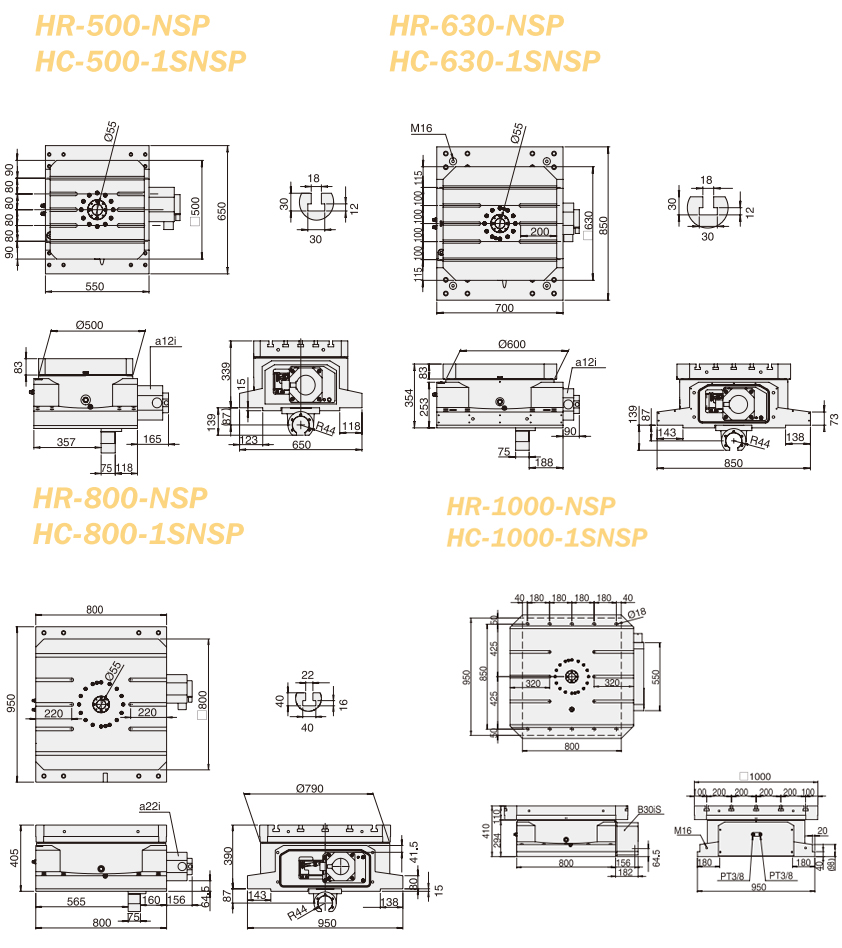

CNC Horizontal Rotary Table
Rotary Table Feature
- Applicable for horizontal machining.
- Hydraulic clamping for heavy cutting.
- Clutch teeth positioned with high for high positioning accuracy without offset.
- A variety of models to meet different processing needs
share:
| Specifications | Unit | HC-500-1SNP | HC-630-1SNP | HC-800-1SNP | HC-1000-1SNP | HR-500-1SNP | HR-630-1SNP | HR-800-1SNP | HR-1000-1SNP |
|---|---|---|---|---|---|---|---|---|---|
| Table diameter | mm | 500*500 | 630*630 | 800*800 | 1000*1000 | 500*500 | 630*630 | 800*800 | 1000*1000 |
| Table bore diameter | mm | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Height of table（horizontal） | mm | 354 | 354 | 405 | 410 | 354 | 354 | 405 | 410 |
| Table T-slot | mm | 18H7 | 18H7 | 22H7 | 22H7 | 18H7 | 18H7 | 22H7 | 22H7 |
| Min indexing unit | deg. | 1° | 1° | 1° | 1° | 1° | 1° | 1° | 1° |
| Speed reduction ratio | / | 1:180 | 1:180 | 1:180 | 1:180 | 1:180 | 1:180 | 1:180 | 1:180 |
| Max.table speed (motor2000 rpm) | rpm | 11.1 | 11.1 | 11.1 | 11.1 | 11.1 | 11.1 | 11.1 | 11.1 |
| Clamping method:Hydraulic | kg/m² | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Locking torque | kg.m | 1218 | 1218 | 2400 | 2400 | 1218 | 1218 | 2400 | 2400 |
| Sevromotor（Option） | Fanuc | a12i/β22is | a12i/β22is | a22i/β30is | a22i/β30is | a12i/β22is | a12i/β22is | a22i/β30is | a22i/β30is |
| Mitsubishi | HG-204S | HG-204S | HG-354S | HG354S | HG-204S | HG-204S | HG-354S | HG354S | |
| Accumulated accuracy | sec | 8 | 8 | 8 | 8 | 15 | 15 | 15 | 15 |
| Repeadtability accuracy | sec | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Allowable work piece load | kg | 1500 | 2500 | 4000 | 4000 | 1500 | 2500 | 4000 | 4000 |
| Allowable cutting torque | kg.m | / | / | / | / | / | / | / | / |
| Net weight without the motor | kg | 510 | 928 | 1458 | 1708 | 560 | 928 | 1458 | 1708 |
