A2-6-20 Synchronous With Pneumatic Spindle
Spindle Feature:
- High-precision transmission: Through the precise meshing of the synchronous belt and the synchronous belt wheel, the high-precision rotation of the spindle is realized to ensure the machining accuracy and stability.
- Power transmission: As the power source of the spindle, the power generated by the motor or other power devices is transmitted to the spindle to drive its rotation and provide the required power for the processing process.
- Speed control: According to different processing requirements, the spindle speed can be accurately controlled by adjusting the number of teeth, diameter of the synchronous pulley or the speed of the motor, etc., to meet the processing needs under different working conditions.
- Position control: In some processing occasions that require accurate positioning, such as drilling, milling, etc., it can be combined with encoders or other position detection devices to achieve accurate control of the spindle position to ensure processing accuracy and repeated positioning accuracy.
SKU:
A2-6-20
Categories: CNC Parts & Tools, CNC Spindles
Tags: Industrial CNC Machine, Vertical Machining Center
Brand: JHXinMai
share:

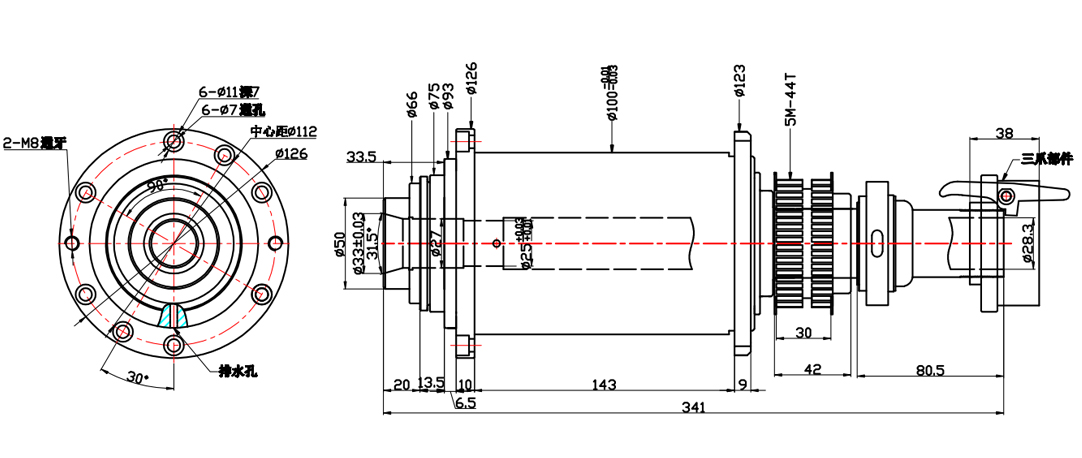

Product drawing number | A2-6-20 | Spindle name | 20 synchronous with pneumatic spindle |
---|---|---|---|
speed of main shaft | 6000-8000RPM | Belt specification | 5M-44T |
Assembly form | Horizontal type | Balance class | G1 |
lubricating system | grease lubrication | Front bearing arrangement | 7009 |
Unit:MM | Uint: 1:3 | Rear bearing arrangement | 7008 |
Drawing date | 2023.7.20 |
