A2-5 46 Machine V-Belt Spindle
Spindle Feature：
- Products are tested in strict accordance with international standards, with long durability and good stability
- Large through-hole to enhance the product processing range, can meet 52mm pass
- It can meet the requirements of high-speed turning and high-gloss turning
- The magnetic ring of various manufacturers can be selected, and the split brake pad is equipped
share:

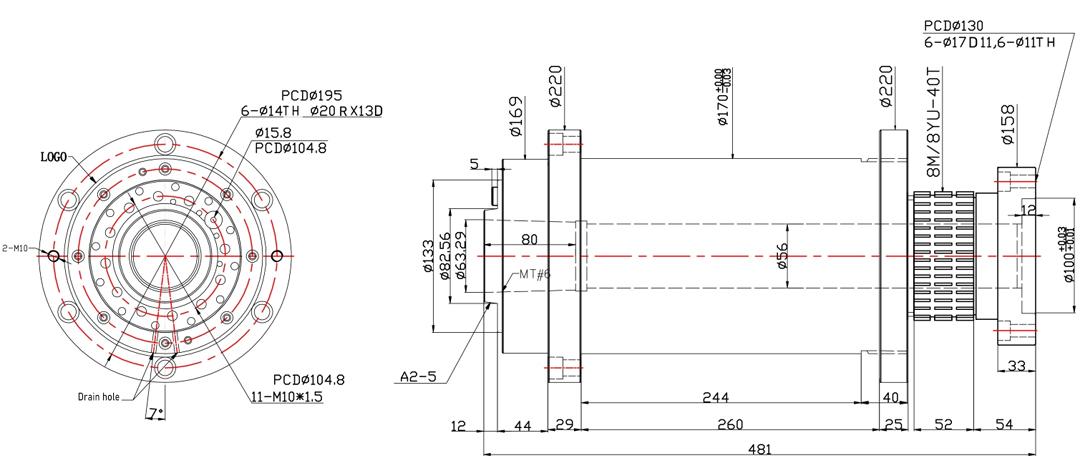

| Product drawing number | A2-5-46 | Spindle name | 46 MACHINE V-BELT SPINDLE |
|---|---|---|---|
| speed of mainshaft | 5000RPM | Belt specification | 8M/8YU-40T |
| Assembly form | horizontal type | driving horse power | 5.5-11Kw |
| lubricating system | grease lubrication | Bore specification | MT#6 |
| Spindle through hole | 56MM | Balance class | G1 |
| Spindle specification | A2-5 | Front bearing arrangement | 7016 |
| Unit：MM | Uint： 1:4 | Rear bearing arrangement | 7016 |
| Drawing date | 2023.4.19 | ||
