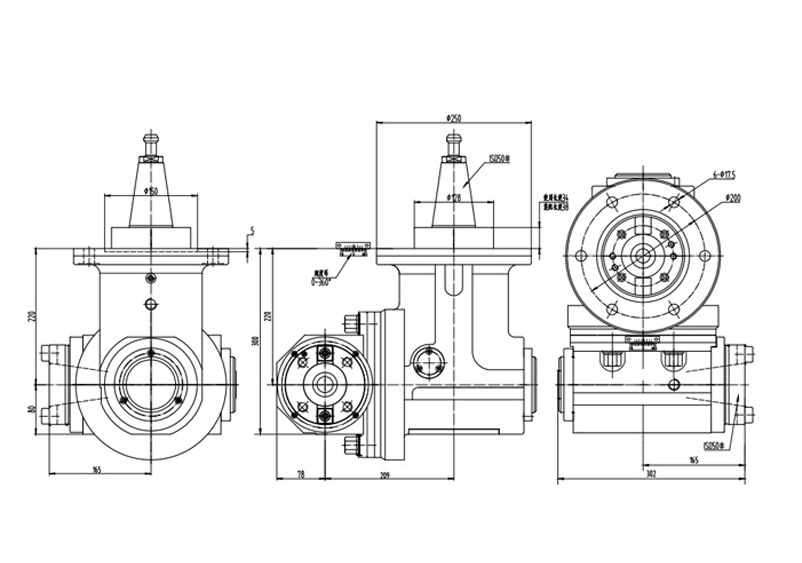

90Degree BT50-BT50 Gantry Universal Milling Head
- High-precision machining: Provide accurate milling operations to ensure the flatness and dimensional accuracy of the machined surface to meet the needs of high-end manufacturing.
- High efficiency processing: Through advanced numerical control technology and optimized cutting parameters, significantly improve the processing speed and efficiency, shorten the production cycle, reduce production costs.
- Adjustable Angle: Support multi-angle milling, suitable for complex shape processing tasks, flexible response to different processing needs.
- Stability and durability: The use of high-strength materials and advanced manufacturing processes to ensure the stability and durability of the milling head under high-strength use, extending the service life
share:
| ITEM | XM90-BT50-BT50 |
|---|---|
| Driving Shank | BT50 |
| More Shank | Can Be Used |
| Max.rpm | 2500RPM |
| Output Rotation | CW-CW |
| Ratio Of Transmission | 1:1 |
| Through TheDiameter | D200 |
| Accuracy | 0.01mm |
| Max Power | 38kw |
| Torque | 1000.Nm |
| WT | 15kg |
| Inventory | Stock |
| Custom | Customization |
