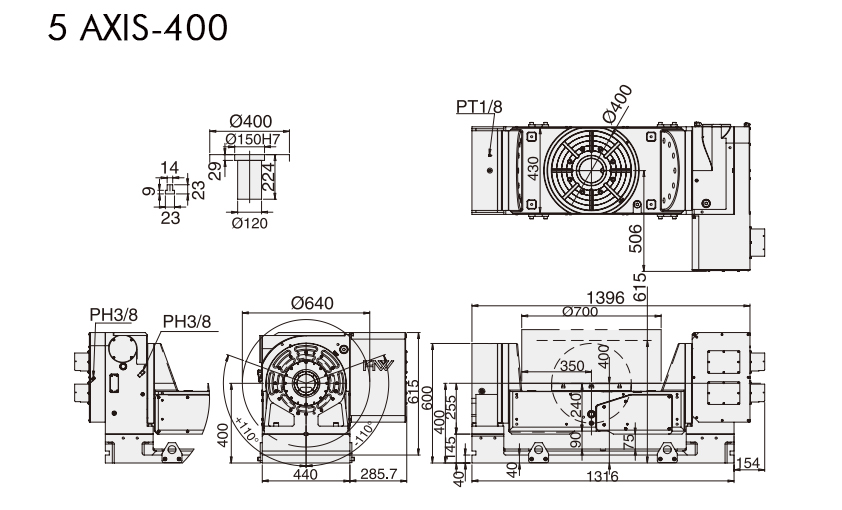

400mm Diameter 5 Axis CNC Rotary Table
CNC Rotary Table Feature:
- High indexing accuracy, high performance and high efficiency
- Five axes are simultaneously controlled, Two axes are independently controlled
- Symmetrical structure design.
- Powerful brake system.
- A variety of models to meet different processing needs
share:
| Specifications | Unit | 5 AXIS-400 |
|---|---|---|
| Table diameter | mm | ∅400 |
| Table bore diameter | mm | ∅150H7 |
| Through hole diameter | mm | 120 |
| Table height(Horizontal) | mm | 400 |
| Table T-slot | mm | 18H8 |
| Posution guide block | mm | 18H7 |
| Axial | / | ±110°（tilt） |
| Min indexing unit | deg. | 0.001° |
| Accumulated accuracy | arc-sec | Rotation:15” Tilt:60” |
| Repeatability | arc-sec | Rotation:4” Tilt:4” |
| Locking system | kg/cm² | Rotation:Pneumatic 5 Tilt:Hydrulic 30 |
| Locking torque | kg.m | Rotation:180 Tilt:260 |
| Sevromotor（Option） | Fanuc | Rotation:β12i Tilt:β22i |
| Mitsubishi | Rotation:HF154 Tilt:HF204 | |
| Speed reduction ratio | sec | Rotation 1:180 Tilt 1:180 |
| Max.table speed (motor2000 rpm) | sec | Rotation:11.1 Tilt:11.1 |
| Allowable work piece load | 0° Horizontal（kg） | 200 |
| 0°-90° Tilt （kg） | 100 | |
| Allowable load | Axial cutting（kgf） | 2000 |
| Radial cutting（kgf.m） | 180 | |
| Side cutting（kgf.m） | 260 | |
| Net weight without the motor | kg | 1200 |
