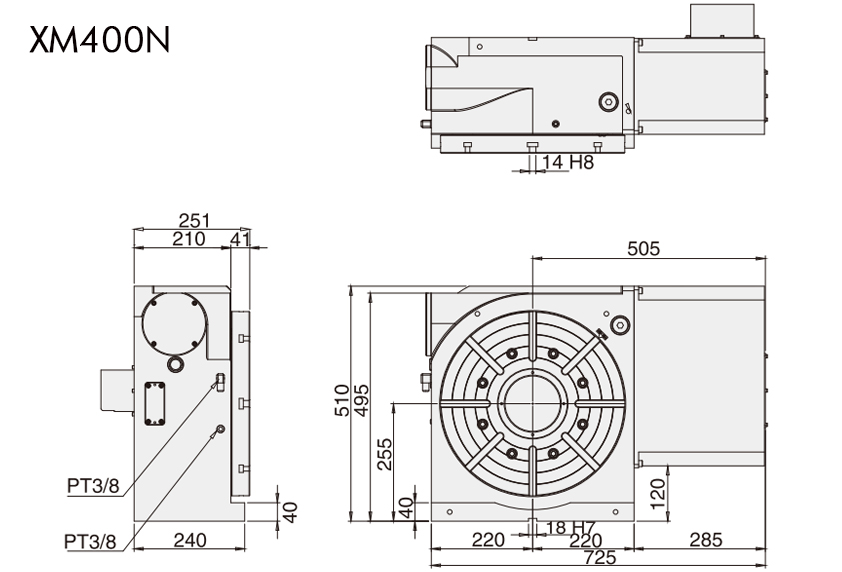

400mm Diameter 4th Axis CNC Rotary Table
CNC Rotary Table Feature:
- High indexing accuracy, high performance and high efficiency.
- Large hole design makes the unit suitable for heavy duty machining.
- Powerful brake system.
- Special needs, can be customized
share:
| Specifications | Unit | 4 AXIS-400N |
|---|---|---|
| Table diameter | mm | ∅400 |
| Table bore diameter | mm | ∅150H7 |
| Through hole diameter | mm | 120 |
| Center height（Vertical） | mm | 255 |
| Table height（Horizontal） | mm | 251 |
| Table T-slot | mm | 18H8 |
| Posution guide block | mm | 18H7 |
| Min indexing unit | deg. | 0.001° |
| Speed reduction ratio | / | 1:180 |
| Max table speed(Motor2000rpm) | rpm | 11.1 |
| Locking system | Hydrulic | |
| Exerted pressure | kg/cm² | 30 |
| Locking torque | kg-m | 218 |
| Sevromotor（Option） | Fanuc | B22i |
| Mitsubishi | HF-204S | |
| Accumulated accuracy | sec | 15 |
| Positioning accuracy | sec | 4 |
| Allowable work piece load | Vertical （kg） | 200 |
| Horizontal（kg） | 550 | |
| Tailstock applied（kg） | 550 | |
| Allowable load | Axial cutting（kgf） | 4000 |
| Radial cutting（kgf.m） | 218 | |
| Side cutting（kgf.m） | 400 | |
| Net weight without the motor | kg | 301 |
