3 Jaw Strong Type Pull Lock Power Chuck
With work piece can do radial clamp and axial pull down at the same time,which able to closer surface of the chuck.Can cooperate with the airtight detection,and axial position confirm.suitable for the precise length control machining requirements.Chuck Actuators with cylindrical structure are durable and ensures high gripping repeatability,Suitable for heavy machining.
SKU:
3-Jaw
Categories: CNC Lathe Chucks, CNC Parts & Tools
Tag: Industrial CNC Machine
Brand: JHXinMai
share:

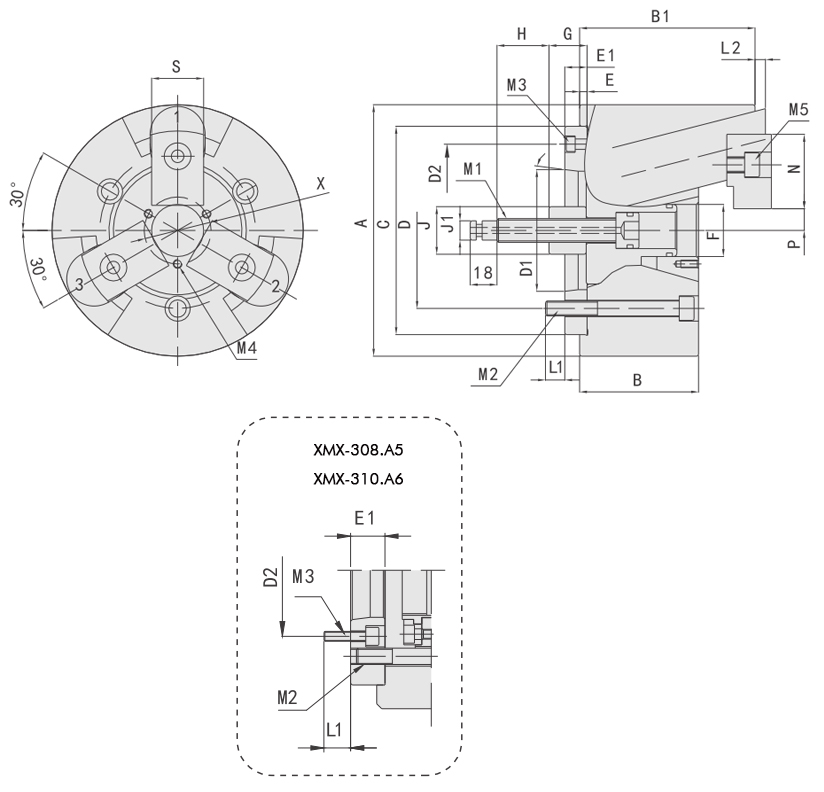

Dimensions | UNIT:mm | ||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model/Spec | A | B | B1 | C(H6) | D | D1 | D2 | E | E1 | F | G max | G min | H | J | J1 | ||||||||||||||||||||||||||||
XMX-306 ·A5 | 168 | 88 | 128 | 140 | 104.8 | 82.56 | 116 | 5 | 15 | 35 | 30 | 15 | 35 | 32 | 13 | ||||||||||||||||||||||||||||
XMX-308 ·A5 | 210 | 100 | 145 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 45 | 27 | 7 | 38 | 37 | 16 | ||||||||||||||||||||||||||||
XMX-308 ·A6 | 210 | 100 | 145 | 170 | 133.4 | 106.38 | 150 | 5 | 17 | 45 | 27 | 7 | 38 | 37 | 16 | ||||||||||||||||||||||||||||
XMX-310 ·A6 | 254 | 110 | 160 | 220 | 171.4 | 106.38 | 133.4 | 5 | 25 | 55 | 31 | 11 | 41 | 48 | 20 | ||||||||||||||||||||||||||||
XMX-310 ·A8 | 254 | 110 | 160 | 220 | 171.4 | 139.72 | 190 | 5 | 18 | 55 | 31 | 11 | 41 | 48 | 20 | ||||||||||||||||||||||||||||
Dimensions | UNIT:mm | ||||||||||||||||||||||||||||||||||||||||||
Model/Spec | L1 | L2min | M1 | M2 | M3 | M4 | M5 | N | P min | S | X | ||||||||||||||||||||||||||||||||
XMX-306 ·A5 | 13 | 8 | M16 | 3-M10 | 3-M6 | 3-M6 | 3-M10 | 50 | 12.5 | 30 | 50 | ||||||||||||||||||||||||||||||||
XMX-308 ·A5 | 17 | 9 | M20 | 3-M12 | 6-M10 | 3-M10 | 3-M12 | 63 | 12.5 | 35 | 60 | ||||||||||||||||||||||||||||||||
XMX-308 ·A6 | 17 | 9 | M20 | 3-M12 | 3-M6 | 3-M10 | 3-M12 | 63 | 12.5 | 35 | 60 | ||||||||||||||||||||||||||||||||
XMX-310 ·A6 | 19 | 9 | M24 | 3-M16 | 6-M12 | 3-M10 | 3-M14 | 74 | 17.5 | 40 | 70 | ||||||||||||||||||||||||||||||||
XMX-310 ·A8 | 19 | 9 | M24 | 3-M16 | 3-M8 | 3-M10 | 3-M14 | 74 | 17.5 | 40 | 70 |
Specifications | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model/Spec | Piunger stroke(mm) | Jaw stroke (Dl8.)mm | Max.Pull foroe KN(kgf) | Max.Gripping force kn(kgf) | Max.Speed r/min | Grippingrange (mm) | Moment of intertial kg.m² | Weight kg | Matching clnale | Max.pressure MPa(kgf/cm2) | ||||||||||
XMX-306 ·A5 | 15 | 7.8 | 18.0(1835) | 58.0(5910) | 6000 | 25-100 | 0.05 | 16.8 | SY-75Q | 2.6(26) | ||||||||||
XMX-308 ·A5 | 20 | 10.3 | 25.0(2550) | 80.0(8150) | 5000 | 25-130 | 0.14 | 28.9 | SY-100Q | 3.6(36) | ||||||||||
XMX-308 ·A6 | 20 | 10.3 | 25.0(2550) | 80.0(8150) | 5000 | 25-130 | 0.14 | 27.1 | SY-100Q | 3.6(36) | ||||||||||
XMX-310 ·A6 | 20 | 10.3 | 35.0(3570) | 100.0(10100) | 4000 | 35-160 | 0.36 | 53.5 | SY-125Q | 3.2(32) | ||||||||||
XMX-310 ·A8 | 20 | 10.3 | 35.0(3570) | 100.0(10100) | 4000 | 35-160 | 0.36 | 51.5 | SY-125Q | 3.2(32) |
