3 Axis Machining CNC Vertical Machining Center IV1160
CNC Vertical Machining Center Feature:
- Machining flexibility for various operations like milling, drilling, and tapping;
- High precision and efficiency;
- Three system choices: Fanuc, mitsubishi, and siemens 828d, with standard original motors;
- Belt or Direct type options available for specific product machining requirements.
share:
Spindle
High-Performance Spindle Structure: The spindle features a high-power, high-torque, high-speed, high-precision structure, with options for 8,000/12,000 belt or Direct type.
Automatic Tool Changer (ATC)
24-Tool Capacity: The tool change time is 2.5 seconds, enabling rapid tool changes, enhancing production efficiency, and minimizing non-machining time.
Electrical Cabinet
Thermal Separation: The electrical cabinet is designed with thermal separation, eliminating the need for radiators and reducing dust ingress.
Coupler
Imported from Taiwan: The couplings use advanced German technology, significantly extending the lifespan of the coupling.
Chip Conveyor
Standard Rear Discharge: The standard rear chip flushing facilitates chip removal.
Integrated Casting

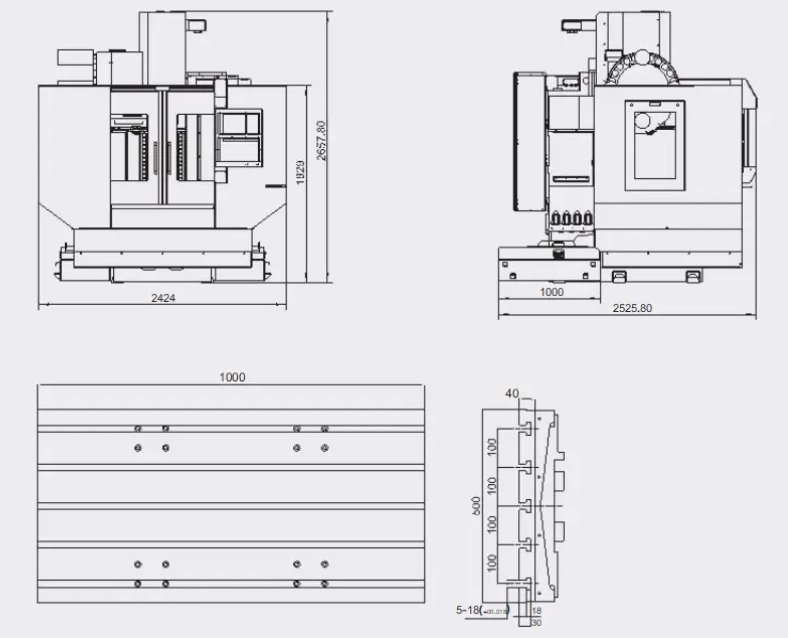

| Project | Unit | Specification A | Specification B | |
|---|---|---|---|---|
| Workbench | Table size | mm | 1300*600 | 1300*600 |
| Max. workpiece size | mm | 1100*600 | 1100*600 | |
| T-slot | mm | 100*18*5 | 100*18*5 | |
| Table load | kg | 600 | 600 | |
| Travel | X/Y/Z travel | mm | 1100 /600/600 | 1100 /600 /600 |
| Spindle nose to table surface | mm | 150-750 | 150-750 | |
| Spindle center to column surface | mm | 615 | 615 | |
| Spindle | Spindle taper | BT40 | BT40 | |
| Spindle speed | rpm | 12000（With oil cooler） | 8000 | |
| Spindle drive method | Direct type | Belt type | ||
| Spindle Motor | Spindle Motor | kw | 11 | 15 |
| Feed Rate | X/Y/Z cutting feed | mm/min | 1~ 10000 | 1~ 10000 |
| X/Y/Z rapid feed | mm/min | 36000 / 36000 / 36000 | 36000 / 36000 / 36000 | |
| Accuracy | Positioning accuracy | mm | 0.008 | 0.008 |
| Repeat positioning accuracy | mm | 0.005 | 0.005 | |
| Automatic Tool Change System | Tool Magazine capacity | T | 24 | 24 |
| Tool change method | Disc arm type | Disc arm type | ||
| Max. tool diameter | mm | Φ85（Φ150 oval space） | Φ85（Φ150 oval space） | |
| Max. tool length | mm | 300 | 300 | |
| Max. tool weight | kg | 7（Tool deflection） | 7（Tool deflection） | |
| Toolholder type | BT40 | BT40 | ||
| Tool change time | S | 2.5 | 2.5 | |
| Other | Air pressure demand | kg/cm2 | 5-6 | 5-6 |
| Max. machining speed | mm/min | 10000 | 10000 | |
| Power requirement | kva | 30 | 30 | |
| Machine weight | kg | 6000 | 6000 | |
| Machine size | mm | 4000*2600*2950（Includes water tank） | 4000*2600*2950（Includes water tank） | |
| No. | Item | Brand | Brand Origin | Remarks |
|---|---|---|---|---|
| 1 | CNC Control System | FANUC | Japan | 0I-MF |
| 2 | Spindle Motor | FANUC | Japan | βiI15/8000 |
| 3 | X/Y/Z Axis | FANUC | Japan | βis22/3000 βis22/3000 βis22B/3000 |
| 4 | Ball Screw (X/Y/Z Axis) | PMI/HIWIN | Taiwan | 40/40/40 |
| 5 | Linear Guide (X/Y/Z Axis) | PMI/HIWIN | Taiwan | 45/45/45 |
| 6 | Screw Coupling | JANETECH | Taiwan | |
| 7 | Ball Screw Bearing | NACHI | Japan | |
| 8 | Lubrication System | HEGU | Joint Venture | |
| 9 | Boosting Cylinder | HINAKA | Taiwan | |
| 10 | Spindle | VYU CHENG/ROYAL | Taiwan | |
| 11 | Tool Magazine | CHNCIT | China | |
| 12 | Cooling Pump | STAIRS | Taiwan | |
| 13 | Air Tank | China | ||
| 14 | Pneumatic Components | SMC | Japan | |
| 15 | Transformer | LUHO | ||
| 16 | Electrical Components | SCHNEIDER | France | |
| 17 | Telescopic Cover | XM | ||
| 18 | Rear Chip Punching | XM | ||
| 19 | Machine External Sheet Metal | XM |
| Standard Configuration | Optional Configuration |
|---|---|
| Mitsubishi M80B | FANUC Oi-MFPLUS, Siemens 828D system |
| Spindle (Taiwan brand) | Rear Discharge Chip Flushing / Chain Plate Chip Discharge |
| ATC tool magazine storage 24T | Chain plate chip removal |
| Guide rail (Taiwan brand) | Automatic door |
| Ball Screw Bearing (Taiwan/Japan) | Center water discharge |
| Retractable shroud (Taiwan brand) | Tool setting instrument |
| Pneumatic Components (Taiwan brand) | Water gun |
