2500ATC High Speed Precision 3 Axis Servo Motor CNC Router Machine for Wood Engraving
CNC Router Machine Feature:
- Automatic tool change: 4 tools one-click accurate tool change
- Integrated structure: industrial seamless welding technology
- Three-axis control system: with manual, stepping, automatic and mechanical origin and other functions
- Linear slide: Imported grinding high precision slide, high precision positioning, low friction, long time to maintain accuracy
- Engraving in various materials: wood, aluminum, composite materials
share:
- 2500ATC adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine’s rigidity and accuracy.
- X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.
- Spindle with high precision, high speed, constant torque, low beating, strong stability, long lifetime characteristics.
- Supporting G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other CAD / CAM software.
- Straight line 4 tool library.
- Standard automatic knife calibration.
| Model | 2500ATC Router Machine |
| Table Size | 1300mm*2500mm |
| Working Stroke | 1300mm*2500mm*120mm |
| Max Spindle Speed | 24000rpm/min |
| Transmission Mode | Lead screw + precision helical teeth |
| Engraving Instruction | G code *.u00*,ENG*,NC |
| Fast Moving Speed | 40m/min |
| Maxi Engraving Speed | 15m/min |
| Motion Positioning Accuracy | ± 0.05 mm |
| Repeated Positioning Accuracy | ±0.02mm |
| Voltage | 380V |
| Machine Weight | 1500KG |

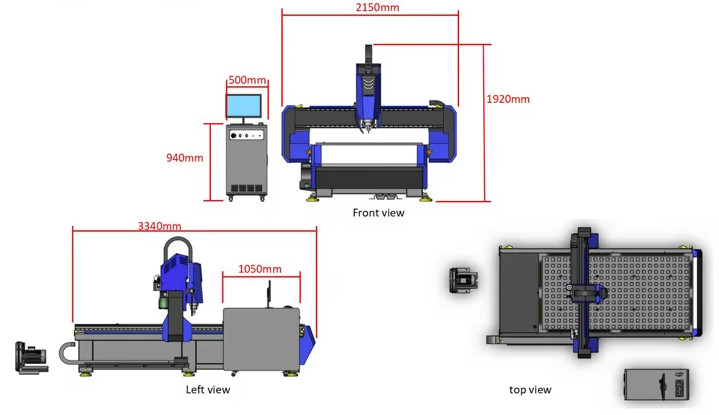

| Size | 2150mm*3850mm*1900mm |
| Part Name | Quantity | Unit | brand/Model |
|---|---|---|---|
| Airframe | 1 | Set | XinMai |
| Table | 1 | Set | Integrated mesa |
| Control System | 1 | Set | In-line tool changing system |
| Principal Axis | 1 | Set | 9KW/380 water-cooled tool change spindle |
| Servo Drive | 4 | Set | ReSai-AC servo motor |
| Lubrication System | 1 | Pcs | Automatic oil supply lubrication system |
| Lead Screw | 1 | Set | TBI |
| Rail | 1 | Set | SMG |
| Frequency Changer | 1 | Set | Frequency changer |
| Tool setting Apparatus | 1 | Pcs | Automatic calibration |
| Sheet Metal | 1 | Set | XinMai |
| Electrical Component | 1 | Set | ZhengTai |
| Vacuum Pump | 1 | Set | 7.5KW air pump |
| Cooling System | 1 | Set | CW5200 chiller |
