170mm Diameter 4th Axis CNC Rotary Table
CNC Rotary Table Feature:
- High indexing accuracy, high performance and high efficiency.
- Four axes are simultaneously controlled. Single axis is independently controlled.
- Suitable for vertical and horizontal machining.
- Special needs, can be customized
share:

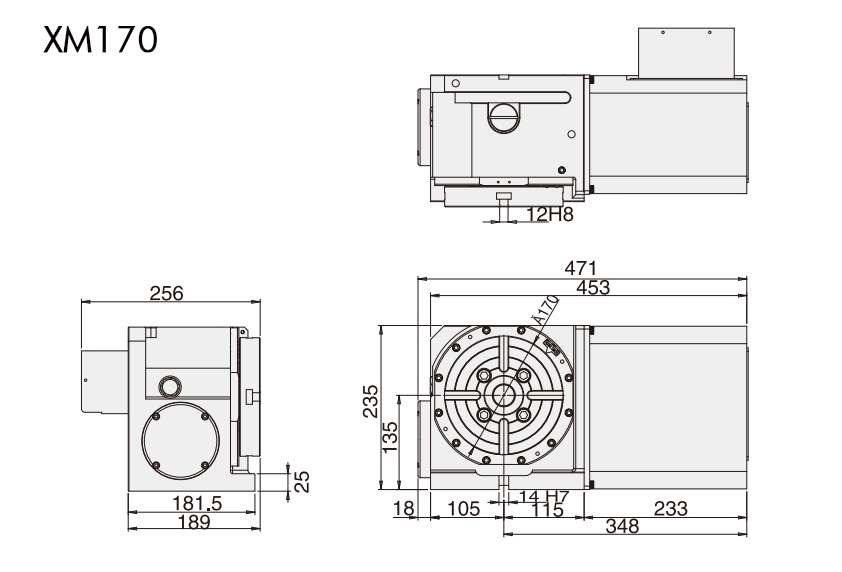

| Specifications | Unit | 4 AXIS-170 |
|---|---|---|
| Table diameter | mm | ∅170 |
| Table bore diameter | mm | ∅55H7 |
| Through hole diameter | mm | 30 |
| Center height（Vertical） | mm | 135 |
| Table height（Horizontal） | mm | 189 |
| Table T-slot | mm | 12H8 |
| Posution guide block | mm | 14H7 |
| Min indexing unit | deg. | 0.001° |
| Speed reduction ratio | / | 1:60 |
| Max table speed(Motor2000rpm) | rpm | 33.3 |
| Locking system | Pneumatic | |
| Exerted pressure | kg/cm² | 6 |
| Locking torque | kg-m | 27 |
| Sevromotor（Option） | Fanuc | β8i |
| Mitsubishi | HF-104S | |
| Accumulated accuracy | sec | 20 |
| Positioning accuracy | sec | 4 |
Allowable work piece load |
Vertical （kg） | 75 |
| Horizontal（kg） | 150 | |
| Tailstock applied（kg） | 150 | |
Allowable load |
Axial cutting（kgf） | 1500 |
| Radial cutting（kgf.m） | 24 | |
| Side cutting（kgf.m） | 41 | |
| Net weight without the motor | kg | 60 |
