150mm Diameter 5 Axis CNC Rotary Table
Five Axis CNC Rotary Table Feature
- High indexing accuracy, high performance and high efficiency
- Five axes are simultaneously controlled, Two axes are independently controlled
- Symmetrical structure design.
- Powerful brake system.
- A variety of models to meet different processing needs
share:

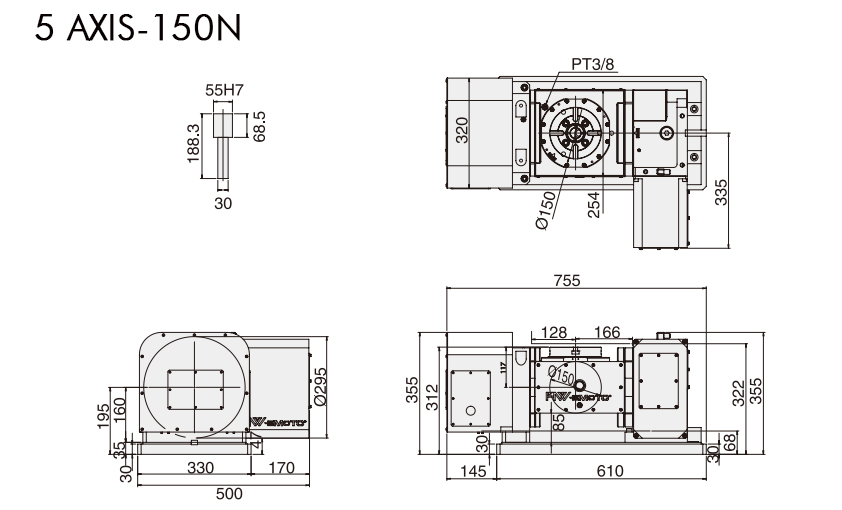

| Specifications | Unit | 5 AXIS-150N |
|---|---|---|
| Table diameter | mm | ∅150 |
| Table bore diameter | mm | ∅55H7 |
| Through hole diameter | mm | 30 |
| Table height(Horizontal) | mm | 312 |
| Table T-slot | mm | 12H8 |
| Posution guide block | mm | 18H7 |
| Axial | / | ±110°（tilt） |
| Min indexing unit | deg. | 0.001° |
| Accumulated accuracy | arc-sec | Rotation:20” Tilt：45” |
| Repeatability | arc-sec | Rotation:4”Tilt:4” |
| Locking system | kg/cm² | Rotation:Pneumatic 5 Tilt:Hydrulic 30 |
| Locking torque | kg.m | Rotation:25 Tilt:31 |
| Sevromotor（Option） | Fanuc | Rotation:β4i Tilt:β8i |
| Mitsubishi | Rotation:HF105 Tilt:HF104 | |
| Speed reduction ratio | sec | Rotation 1:120 Tilt 1:144 |
| Max.table speed (motor2000 rpm) | sec | Rotation: 16.6 Tilt:13.8 |
| Allowable work piece load | 0° Horizontal（kg） | 75 |
| 0°-90° Tilt （kg） | 50 | |
| Allowable load | Axial cutting（kgf） | 750 |
| Radial cutting（kgf.m） | 25 | |
| Side cutting（kgf.m） | 31 | |
| Net weight without the motor | kg | 250 |
